Hospital Cubical Tracks (ZX)

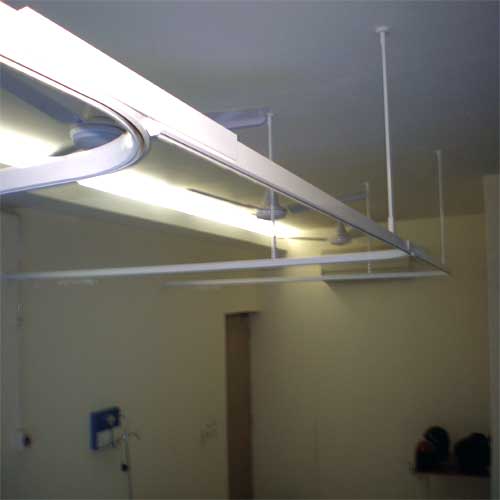

These Hospital Cubicle Tracks Bangalore are widely used in many hospitals and nursing homes for the smooth and noise less movement of curtains. Fabricated using premium quality metal coupled with fine finish, these are available in different models in various specifications. Easy to install and operate, the curtain tracks are high in utility value.A general-purpose Hospital cubicle Tracks ideal for enclosing patient beds,shower areas or anywhere personal privacy is required.

Cubical Tracks “Zx”

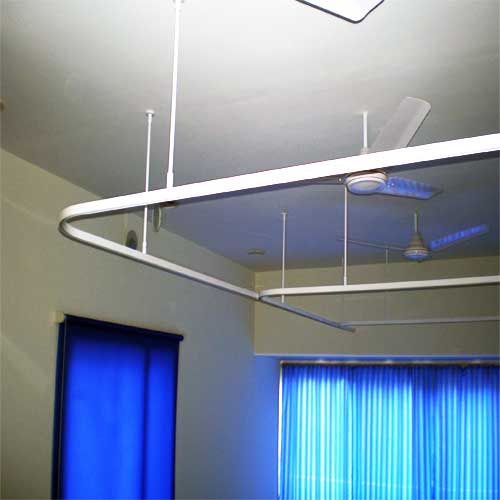

Track “ZX” made of aluminum alloy (6063-T6) All corner edges of the profile have radius of 0.5, The strength of profile is 195 Tensile, MPa, shear strength 150 Mpa. Shape and size tolerance as ISO standard 733-1983, all material to have ROHS compliances, with Corrosion resistance properties with 50-60 micron compliances, with corrosion resistance properties with 50-60 micron with seven stage processes, tracks to have drill guide on the top.  box size 20.20 x 27.20 mm with 60 microns plus thick pure polyester powder coating finish with white color.  Tracks can be shaped according to requirement or radius of 90 degree angle to cover a bed.

Ceiling supporting system and other parts

Wall Bracket

Made of CRC steel with powder coating finish.

Bridge clamp/ Connector

Made of aluminum with powder coating finish

Roof Suspension Hanger

Made of aluminum pipe of 12.30 & 20.00 mm diameter, The Round plate of the suspension hanger is 44.27 mm diameter with white powder coating finish and can be adjustable according to the height.

Runner Loading Point

Made of SS for loading & unloading of runners with using any tool & also stop curtains to go beyond his width.


Made of Deralin with two wheels & specially greased with silicone spray for smooth movement of curtain. The bottom Hook made in 304 S.S.

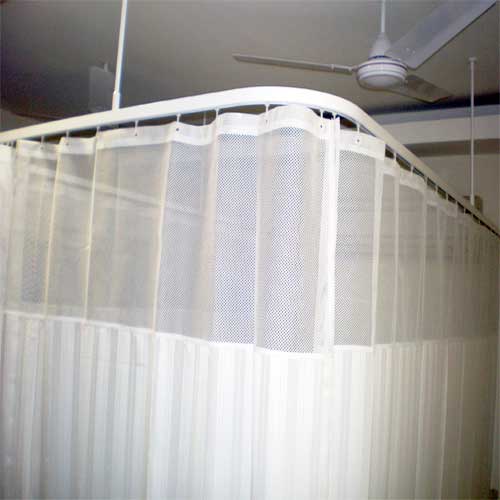

Medical grade curtain fabric made of 100% polyester yarn of premium quality weaved on shuttles looms with water repellent treatment, which makes fabric strain free / liquid does not penetrate, if any thick liquid stick on curtain, it will goes off while washing. The curtain top with 16”/24” Nett and balance fabric as per selected by you. Curtains joints are finished with two ways stitching rather than over lock. The curtain elates are made off specially punched with plastic melting machine, which is soft, flexible, durable and easy to put and take off the curtains.
